• Inner tank material: SA-240 304

• Outer tank material: SA-240 304

• Saddle: SA-240 304

• Insulation: MLI + vacuum

• Inner tank geometric volume: 200 - 1000 liter

• Inner tank design pressure: 21,97 bar

• Max Working Pressure: 15,9 bar

• Economizer (Er) setting at: 8,6 bar

• Regulator (PBr) setting at: 8 bar

• Tank design temperature: -196 °C + 45 °C

• Minimum impact test temperature (liquid Nitrogen): -196 °C

• Density LNG tank design: 426 kg/m .

• Daily boil-off Rate: 2,0 (LIN) %/d

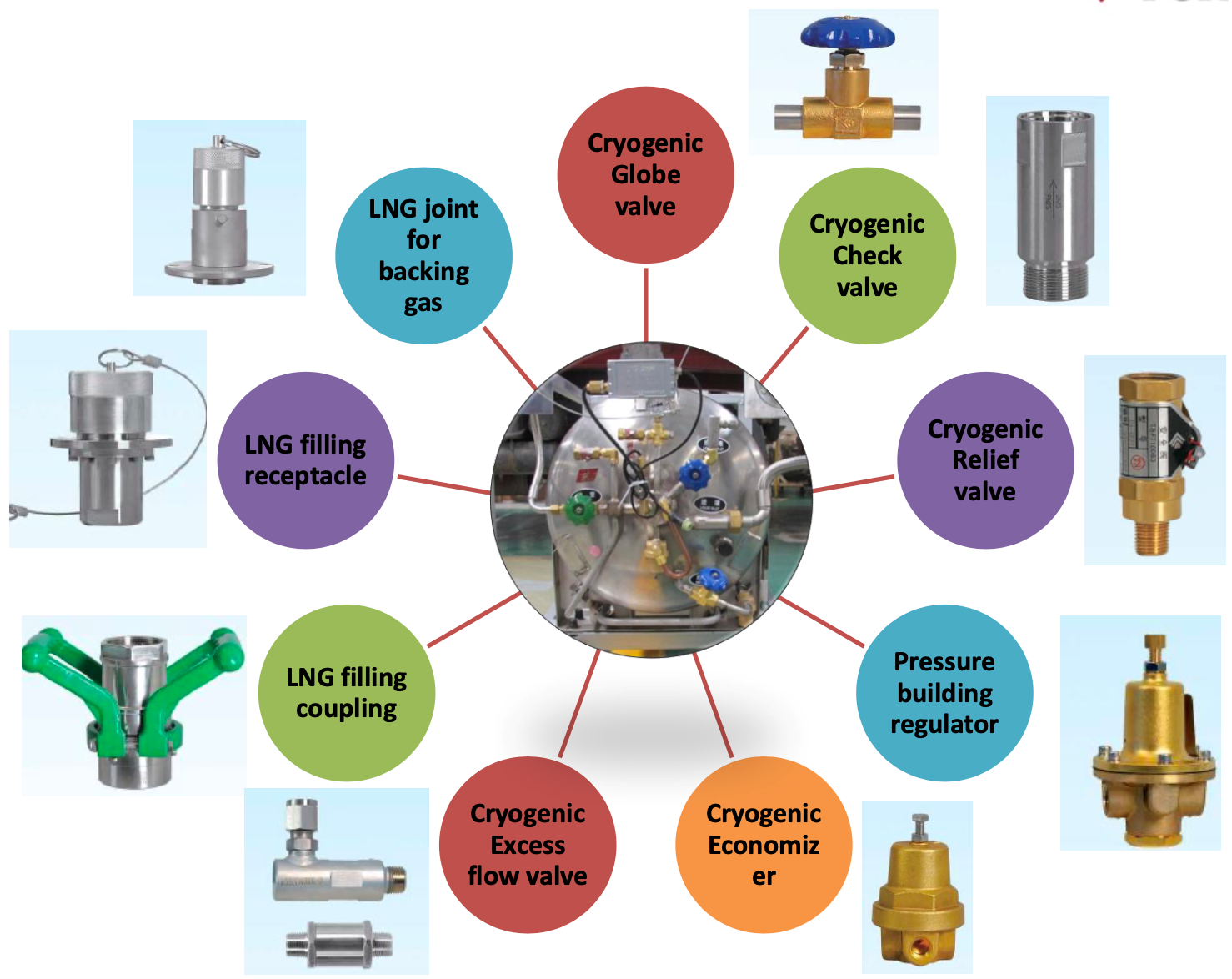

• System includes:

Vaporizer

all kind of valves (shut-off, check, excess flow, safety etc)

regulators

Receptacles (filling, vent)

Gauges

Sensors

Transmitter

Coiler

Solenoid Valve

Mounting Brackets / Frame

Fittings, hoses, pipes

• ECE R110 approval, EN1251

• Different options are available.

• Please contact for datasheet, 2D and 3D.
